Nominal capacity

900Ah

Nominal voltage

48V

Electricity(kWh)

45kWh

Inverter AC Output

Max power(kw)

18kW

Voltage(VAC)

360/380/397/415

Powerfactor(PF)

1

Frequency

50/60Hz±0.1%

Switch time(ms)

10(normal mode)/10(UPS mode)

Wave form

Pure sine wave

Overload capaity (batery mode)

60s@102%~110%load;10s@110%~130%load;3s@130%~150%load;0.2s@>150%load

Max.Efficiency(battery mode)

93%@48VDC

Max.Parallel Quantity

3 groups(54kWh)

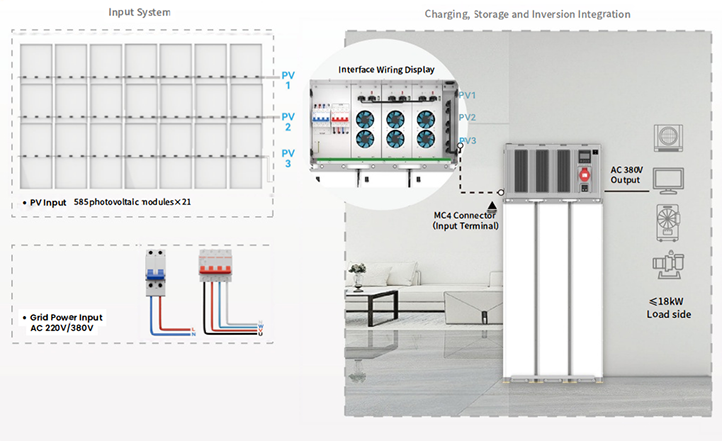

Photovoltaic/AC Input

Rated input voltage(VAC)

360/380/397/415;U+V+W+N+PE

Phase voltage range(VAC)

90~280±3(normal mode);170~280±3(UPS mode)

Frequency  (Hz)

50/60(auto adaptive)

Solar charger type

MPPT

Max PVinputcurrent/input power

18A/6000W×3

MPPT range@operating voltage per unit(VDC)

120~450

MaxPVopen circuit voltage per unit (VDC)

500

Max PVcharge current per unit(A)

80

Max AC charge current perunit(A)

80

Max.charge current per unit(PV+AC)(A)

80
