Nominal capacity

300Ah

Nominal voltage

48V

Electricity(kWh)

15kWh

Inverter AC Output

Max power(kw)

6kW

Voltage(VAC)

208/220/230/240

Power factor(PF)

1

Frequency

50/60Hz±0.1%

Switch time(ms)

10(normal mode)/10(UPS mode)

Wave form

Pure sine wave

Overload capacity(battery mode)

60s@102%~110%load;10s@110%~130%load;
3s@130%~150%load;0.2s@>150%load

Max.Efficiency(battery mode)

93%@48VDC

Max.Parallel Quantity

9groups(54kWh)

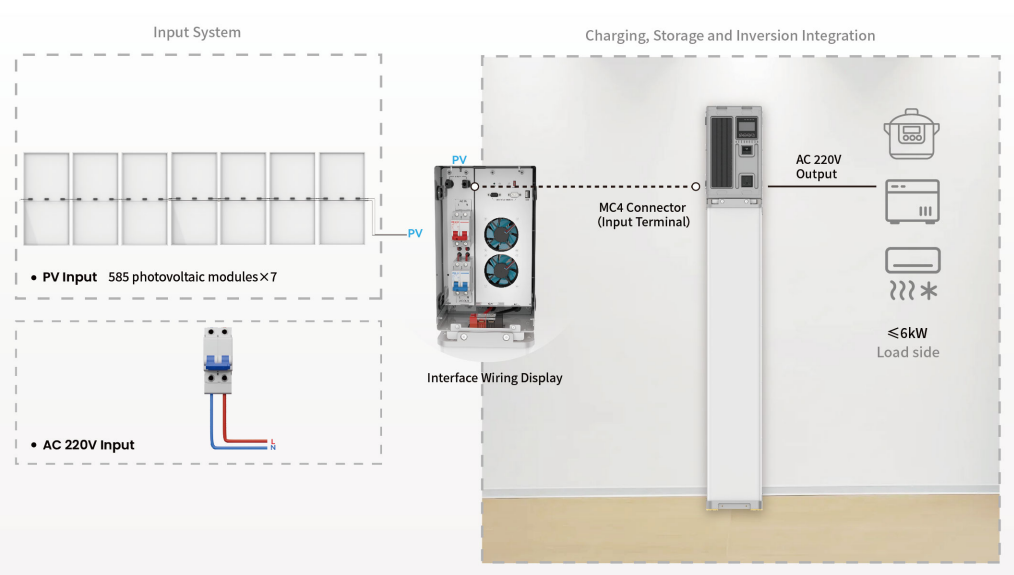

Photovoltaic/AC Input

Rated input voltage(VAC)

208/220/230/240;L+N+PE

Phase voltage range(VAC)

90~280±3(normal mode);170~280±3(UPS mode)

Frequency(Hz)

50/60(auto adaptive)

Solar charger type

MPPT

Max PV input current/input power

18A/6000W

MPPT range@operating voltage(VDC)

120~450

Max PV open circuit voltage(VDC)

500

Max PV charge current(A)

80

Max AC charge current(A)

80

Max.charge current(PV+AC)(A)

80
