220V SYSTEM SOLUTION

220v Inverter Box Solution(10/12/15kWh)

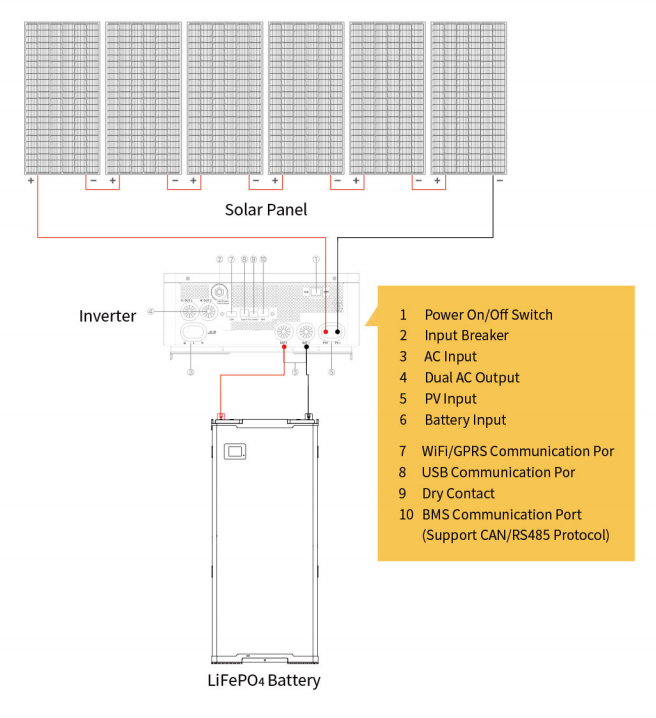

Inverter Box is mainly composed of solar panel, energy storage battery

and inverter. As an off-grid system which operates independently, and

integrates power generation, storage and inversion. It can be charged by

solar panel, store the solar energy in the battery, and convert it into AC

current through the inverter to provide power to the load, which solves

the problem of electricity in the areas without power supply electricity is

not convenient areas, electricity of cut off areas. Which has a wide range

of application scenarios and it is not affected by the State Grid. It is a

home-based power supply solution system.


Description

Solar Panel

Open-Circuit Voltage(Voc)[V]

49.68V

Optimum Operating Voltage(Vmp)[V]

44.14V

Short-Circuit Current(Isc)[A]

13.50A

Optimum Operating Current(Imp)[A]

12.46A

Wafer Efficiency[%]

23.3%

LiFePO4 Battery

Nominal Voltage

48V

Nominal Capacity

200Ah/250Ah/300Ah

Electricity(kWh)

10.24kWh/12.8kWh/15.36kWh

Inverter

Rated Input Voltage(VAC)

208/220/230/240;L+N+PE

Voltage Range(VAC)

90~280±3(normal mode);170~280±3(UPS mode)

Frequency(Hz)

50/60(Auto Adaptive)

Rated Capacity(kw)

6kW

Frequency

50/60Hz±0.1%

Wave Form

Pure Sine Wave

Battery Rated Voltage (VDC)

48
