220v Inverter Box Solution（5/6/7.2kWh）

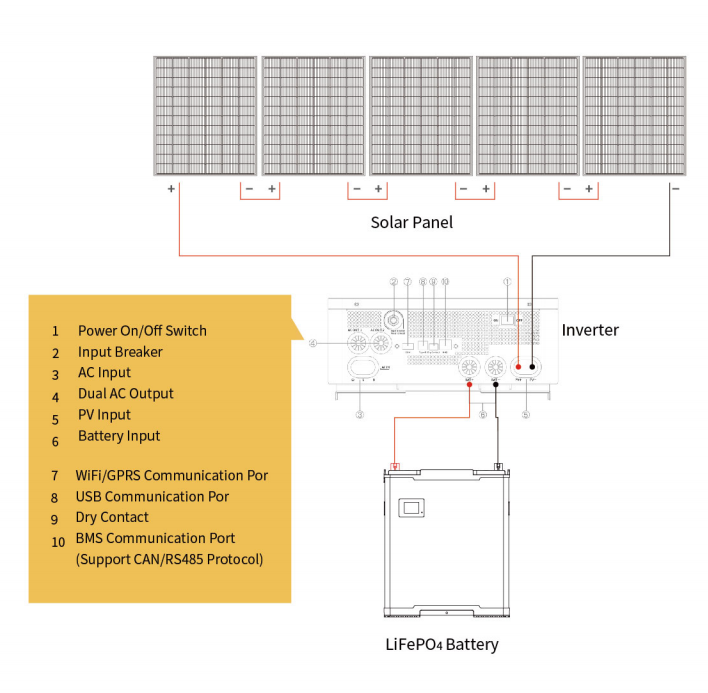

Inverter Box is mainly composed of solar panel, energy storage battery
and inverter. As an off-grid system which operates independently, and
integrates power generation, storage and inversion. It can be charged
by solar panel, store the solar energy in the battery, and convert it into
AC current through the inverter to provide power to the load, which
solves the problem of electricity in the areas without power supply
electricity is not convenient areas, electricity of cut of areas. Which has
a wide range of application scenarios and it is not affected by the State
Grid.It is a home-based power supply solution system.
Solar Panel | |
Open-Circuit Voltage(Voc)[V] | 49.18V |
Optimum Operating Voltage(Vmp)[V] | 43.49V |
Short-Circuit Current(Isc)[A] | 7.61A |
Optimum Operating Current(Imp)[A] | 6.90A |
Component Efficiency[%] | 22.1% |
LiFePO₄Battery | |
Nominal Voltage | 24V |
Nominal Capacity | 200Ah/250Ah/300Ah |
Electricity(kWh) | 5.12kWh/6.4kWh/7.68kWh |
Inverter | |
Rated Input Voltage(VAC) | 208/220/230/240;L+N+PE |
Voltage Range(VAC) | 90~280±3(normal mode);170~280±3(UPS mode) |
Frequency(Hz) | 50/60(Auto Adaptive) |
Max Power(kw) | 4kW |
Frequency | 50/60Hz±0.1% |
Wave Form | Pure Sine Wave |
Rated Voltage (VDC) | 24 |
