Nominal Capacity

200Ah/250Ah/300Ah

NominalVoltage

24V(25.6V)

Electricity(kWh)

5.12kWh/6.4kWh/7.68kWh

Input

Full Charge Voltage

29.2V

Maximum Charging Voltage

30V

Input Voltage Range

28V-30V

Continuously Use Input Current

100A

Maximum Solar Panel Input Current

100A

Overcharge Delay Protection

1000ms

Output

Continuously Use Output Current

100A

Discharge Cut-off Voltage

20V-24V

Over-Discharge Delay Protection

1000ms

Short Circuit Protection Delay

300us

Short Circuit Protection Recovery

Disconnect load

Instant Start Current

400A

Instant Start Current Time

10S

Battery

CellType

LiFePO₄Battery/LFP

Storage Temperature Range Short-Term

-20℃-40℃(Within  1  month)
Long-term 10℃-35℃(Within 1year)

Operating Temperature Range

-15℃-60℃

Recommended Temperature Range

10℃-40℃

Storage Humidity

≤75%RH

Atmospheric Pressure

Below the elevation of 5000m

Self-Discharge(25℃)

<3%/Month

Depth of Discharge

>80%

C-rate Discharge

<0.8C

Cycle Life

>6000 times (<0.5C)

Other

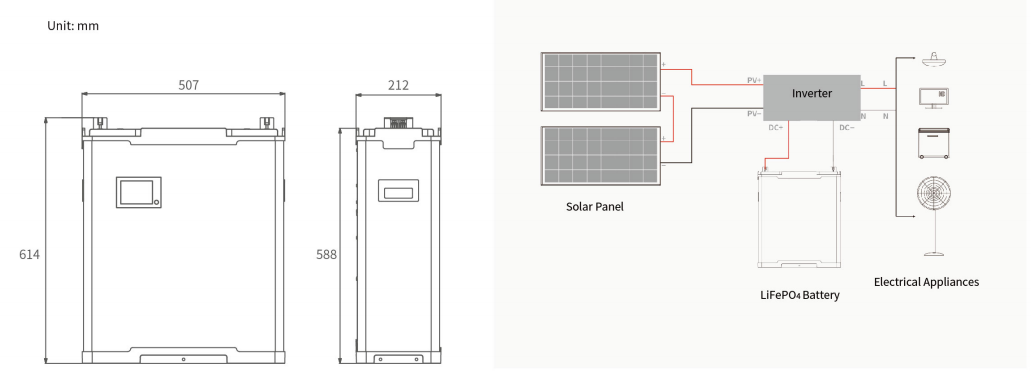

Package Size

668±2×328±2×706±2mm

Certification Standards

UN38.3/CE/MSDS/DGM
