Nominal Capacity

100Ah

Nominal Voltage

48V(51.2V)

Electricity(kWh)

5.12kWh

Input

Full Charge Voltage

58.4V

Maximum Charging Voltage

60V

Input Voltage Range

58V-60V

Continuously Use Input Current

100A

Maximum Solar Panel Input Current

100A

Overcharge Delay Protection

1000ms

Output

Continuously Use Output Current

100A

Discharge Cut-off Voltage

44V-46V

Over-Discharge Delay Protection

1000ms

Short Circuit Protection Delay

300us

Short Circuit Protection Recovery

Disconnect load

Instant Start Current

300A

Instant Start Current Time

10s

Battery

Cell Type

LiFePO₄Battery/LFP

Storage Temperature Range

Short-Term -20℃-40℃(Within 1 month)

Long-term 10℃-35℃(Within 1year)

Operating Temperature Range

-15℃-60℃

Recommended Temperature Range

10℃-40℃

Storage Humidity

≤75%RH

Atmospheric Pressure

Below the elevation of 5000m

Self-Discharge(25℃)

<3%/Month

Depth of Discharge

>80%

C-rate Discharge

<0.8C

Cycle Life

>6000  times(<0.5C)

Other

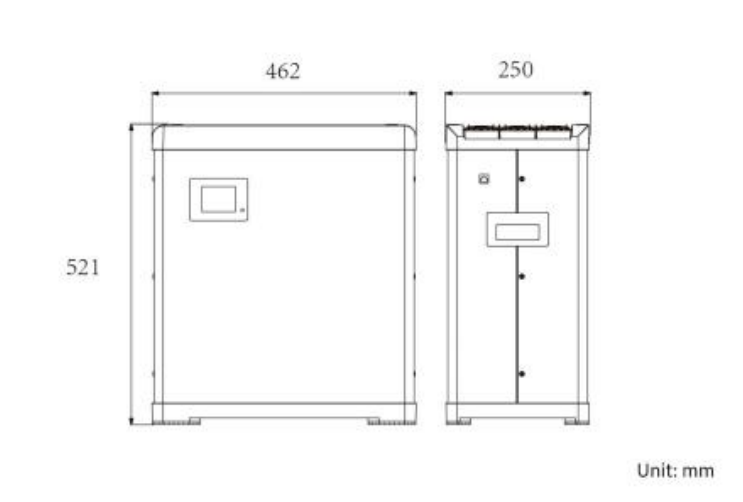

Package Size

550(±2)×333(土2)×601(±2)mm

Certification Standards

UN38.3/CE/MSDS/DGM
