Nominal Capacity

100Ah/120Ah

Nominal Voltage

24V(25.6V)

Electricity(kWh)

2.56kWh/3.07kWh

Input

Full Charge Voltage

29.2V

Maximum Charging Voltage

30V

Input Voltage Range

28V-30V

Continuously Use Input Current

100A

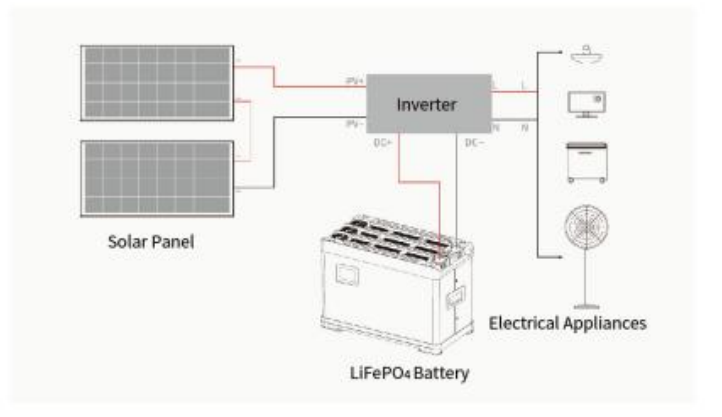

Maximum Solar Panel Input Current

100A

Overcharge Delay Protection

1000ms

Battery

Cell Type

LiFePO4Battery/LFP

Storage Temperature Range

Short-Term-20℃-40℃(Within 1 month)

Long-term 10℃-35℃(Within 1 year)

Operating Temperature Range

-15℃-60℃

Recommended Temperature Range

10℃-40℃

Storage Humidity

≤75%RH

Atmospheric Pressure

Below the elevation of 5000m

Self-Discharge(25℃)

<3%/Month

Depth of Discharge

>80%

C-rate Discharge

<0.8C

Cycle Life

>6000  times(<0.5C)

Output

Continuously Use Output Current
Discharge Cut-off Voltage

100A
20V-24V

Over-Discharge Delay Protection

1000ms

Short Circuit Protection Delay

300us

Short Circuit Protection Recovery

Disconnect load

Instant Start Current

400A

Instant Start Current Time

10s

Other

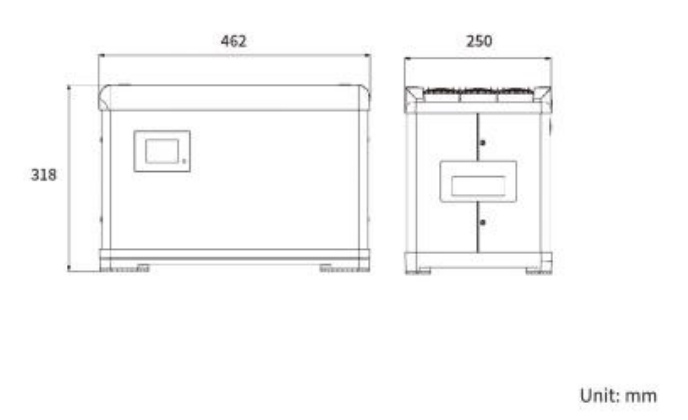

Package Size

545(±2)×328(±2)×393(±2)mm

Certification Standards

UN38.3/CE/MSDS/DGM
