BCT-UU 48-200/250/300

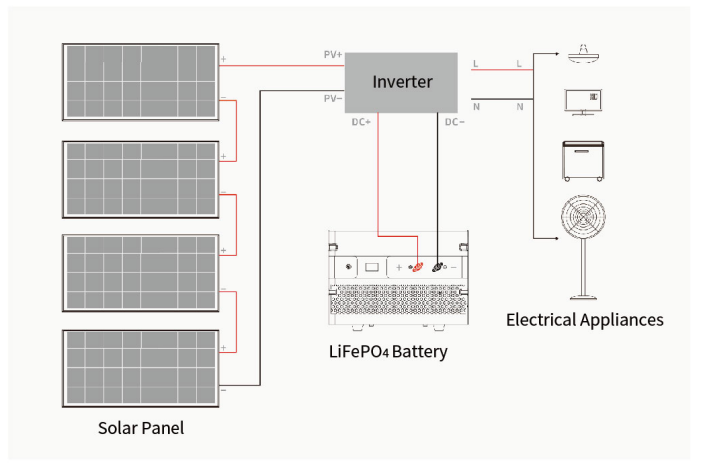

1. Utilizing sunlight for clean energy charging, which can provide power to household appliances.
2. Excess solar energy is stored in batteries during the day and used at night, thus maximizing the utilization rate of solar energy.
3. Achieving electricity freedome in areas with no or limited power supply.
4. Using stored energy during blackout to keep appliances running.
Basic Specifications | |
Nominal Capacity | 200Ah/250Ah/300Ah |
Nominal Voltage | 48V(51.2V) |
Electricity(kWh) | 10.24kWh/12.8kWh/15.36kWh |
Input | |
FullCharge Voltage | 58.4V |
Maximum Charging Voltage | 60V |
Input Voltage Range | 58V-60V |
Continuously Use Input Current | 100A |
Maximum Solar Panel Input Current | 100A |
Overcharge Delay Protection | 1000ms |
Output | |
Continuously Use Output Current | 100A |
Discharge Cut-off Voltage | 44V-46V |
Over-Discharge Delay Protection | 1000ms |
Short Circuit Protection Delay | 300us |
Short Circuit Protection Recovery | Disconnect load |
Instant Start Current | 300A |
Instant Start Current Time | 10s |
Other | |

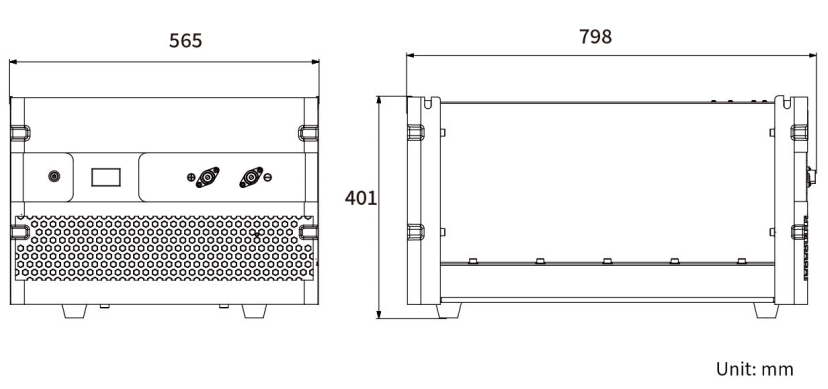

Package Size | 903(±2)×671(±2)×451(±2)mm |
Certification Standards | UN38.3/CE/MSDS/DGM |
