Nominal Capacity

100Ah

Nominal Voltage

48V(51.2V)

Electricity(kWh)

5.12kWh

Input

Full Charge Voltage

58.4V

Maximum Charging Voltage

60V

Input Voltage Range

58V-60V

Continuously Use Input Current

50A

Maximum Solar Panel Input Current

50A

Overcharge Delay Protection

1000ms

Output

Continuously Use Output Current

50A

Discharge Cut-off Voltage

44V-46V

Over-Discharge Delay Protection

1000ms

Short Circuit Protection Delay

0.3ms

Short Circuit Protection Recovery

Disconnect load

Instant Start Current

200A

Instant Start Current Time

5000ms

Battery

Cell Type

LiFePO₄Battery/LFP

Storage Temperature Range

Short-Term -20℃-40℃(Within 1month)

Long-term 10℃-35℃(Within 1 year)

Operating Temperature Range

-15℃-60℃

Recommended Temperature Range

10℃-40℃

Storage Humidity

≤75%RH

Atmospheric Pressure

Below the elevation of 5000m

Self-Discharge(25℃)

<3%/Month

Depth of Discharge

>80%

C-rate Discharge

<0.8C

Cycle Life

>6000  times(<0.5C)

Other

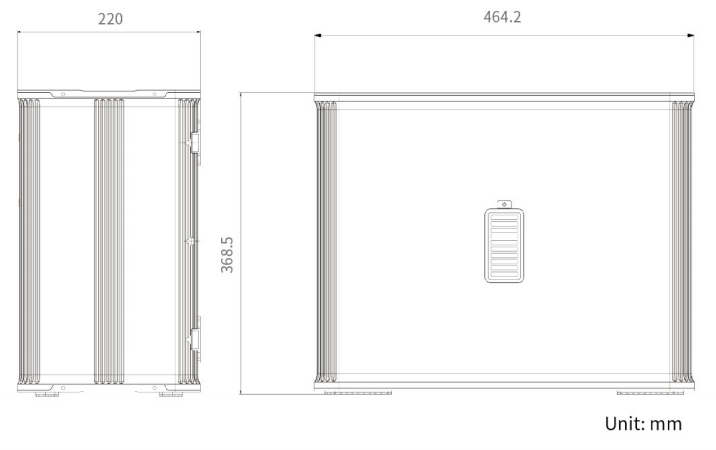

Product Size

464.2(±2)×368.5(±2)×220(±2)mm
