DC System | Battery Compartment 1 | Battery Compartment 2 | |
Pellet Power Station | PVModule Power | 585W×4 | 585W×4 |
Battery Cell types | Lithium Battery | Lithium Battery | |
Battery Capacity | 100Ah×16 | 200Ah×16 | |
DC Output Voltage | 48V | 48V | |
Maximum DC Power | 2400W | 4800W | |
Maximum DC Output Current | 50A | 100A | |

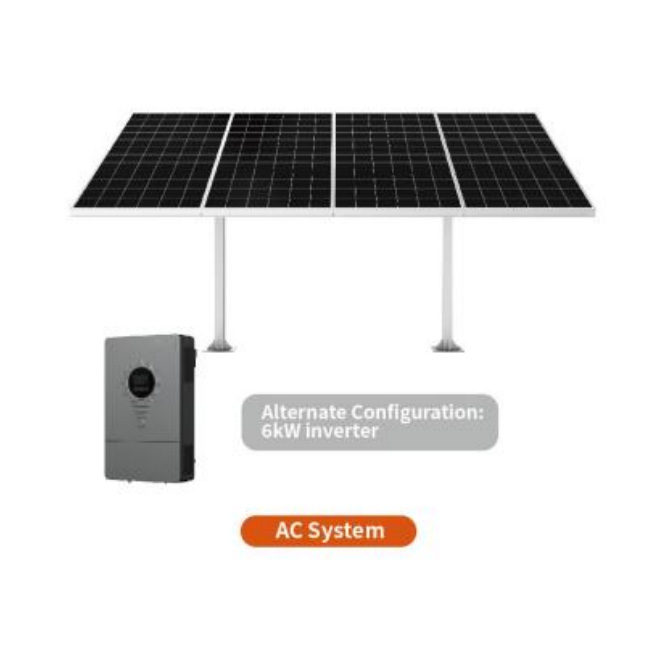

AC System | ||
Inverter AC output | Rated Capacity(kW) | 6 |
Surge Power (kVA) | 10 | |
Voltage(VAC) | 208/220/230/240 | |
Power Factor(PF) | 1 | |
Frequency | 50/60Hz±0.1% | |
Switch Time(ms) | 10(normal mode)/10(UPS mode) | |
Wave Form | Pure Sine Wave | |
Overload Capacity(Battery Mode) | 60s@102%~110%load;10s@110%~130%load; 3s@130%~150%load;0.2s@>150%load | |
Max.Efficiency (Battery Mode) | 93%@48VDC | |
Parallel Quantity | 9 | |
