Off-grid Inverter
1.High frequency inverter with small size and light weight
2.Pure sine wave AC output
3.Solar and utility grid can power loads at the same time
4.With CAN/RS485 for BMS communication
5.With the ability to work without battery
6.WIFI/ GPRS remote monitoring (optional)

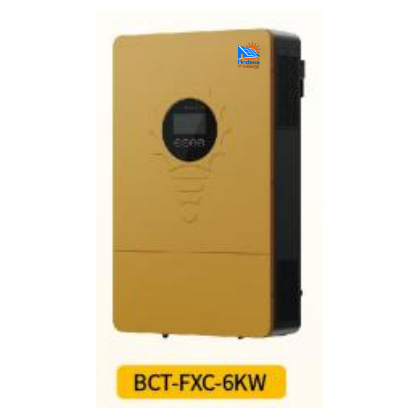

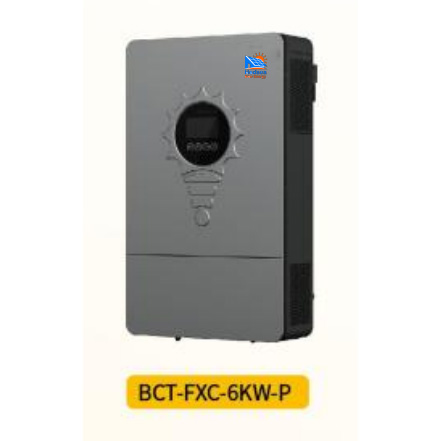

MODEL | BCT-FXC-4KW | BCT-FXC-6KW | BCT-FXC-6KW-P |
AC INPUT | |||
Rated Input Voltage(VAC) | 208/220/230/240;L+N+PE | ||
Voltage Range(VAC) | 90~280±3(normal mode);170~280±3(UPS mode) | ||
Frequency(Hz) | 50/60(Auto Adaptive) | ||
AC OUTPUT | |||
Rated Capacity(kw) | 4 | 6 | |
Peak Power(kVA) | 5.7 | 10 | |
Voltage(VAC) | 208/220/230/240 | ||
Power Factor(PF) | 1 | ||
Frequency | 50/60Hz±0.1% | ||
Switch Time(ms) | 10(normal mode)/10(UPS mode) | ||
Wave Form | Pure Sine Wave | ||
Overload Capacity(Battery Mode) | 60s@102%~110%load;10s@110%~130%load; | ||
Max.Efficiency (Battery Mode) | 92.7%@24VDC | 93%@48VDC | 93%@48VDC |
Parallel Quantity | NA | NA | 9 |
CHARGER(PV/AC) | |||
Solar Charger Type | MPPT | MPPT | MPPT |
MaxPV Input Current/input Power | 18A/5000W | 18A/6000W | 18A/6000W |
MPPT Range@Operating Voltage(VDC) | 40~450 | 120~450 | 120~450 |
MaxPVOpen Circuit Voltage(VDC) | 500 | 500 | 500 |
Max PV Charge Current (A) | 100 | 100 | 80 |
Max AC Charge Current (A) | 100 | 100 | 80 |
Max.Charge Current(PV+AC)(A) | 100 | 100 | 80 |
BATTERY | |||
Rated Voltage(VDC) | 24 | 48 | |
Floating Charge Voltage (VDC) | 27 | 54 | |
Overcharge Protection (VDC) | 30.5 | 61 | |
Battery Type | Lithium and Lead-acid | Lithium and Lead-acid | |
INTERFACE | |||
HMI | LCD | LCD | |
Interface | RS485/RS232/USB/Dry Contact | RS485/RS232/USB/Dry Contact | |
Monitoring | WiFi (Optional) | WiFi (Optional) | |
GENERAL DATA | |||
Ingress Protection | IP20 | IP20 | |
Operating Temperature | -10℃~50℃ | -10℃~50℃ | |
Relative Humidity | 5%~95%(Non-condensing) | 5%~95%(Non-condensing) | |
Storage Temperature | -15℃~60℃ | -15℃~60℃ | |
Net Weight(kg) | 8 | 9 | |
Dimensions (W"H*D) | 490*306*115mm(without bracket) | 510*306*115mm(without bracket) | |
Max.Operating Altitude | 4000m(Derating above 1000m) | 4000m(Derating above 1000m) | |
